IV98 Softline
98 mm thickness timber window and doors profile IV98 Softline. U = 0.8 W/m²K
IV98 Softline – a laminated timber window profile of 98 mm thick, which we have started to produce in 2013. The main advantages and technical characteristics of this profile are as follows:
- Timber window heat transfer coefficient Uw is 0,8 W/m2K. It is cost-effective, low energy timber window profile. Timber windows and doors are suitable for A++ and passive houses.
- All glass units are insulated with “Swisspacer Ultimate” warm edge spacers. It is the new generation of fiberglass spacer profile, which was released in 2014. If all three glass panes are in thickness of 4 mm and the spacers between glass panes are of 20 mm, it helps to maintain an optimal space between glasses and so ensures better heat values when atmospheric pressure or temperature have an impact on it. As standard, we offer 52 mm thickness glass units, though it could be up to 60 mm.
- Better sound isolation Rw 35(-3;-7) dB.
- A glass unit has been extended into 98 mm profile in order to minimize cold bridge all over the glass unit’s perimeter.
- Secure by Design option for 98 Softline inward and outward opening windows and doors is available. .
- An option clad a timber window with "ALURON" aluminum from the outside.
- Оur timber windows have dual seals (gaskets) all over a sash perimeter to ensure air permeability to class 4.
- Inward opening windows IV98 profile have water tightness to class 9A (600 Pa) and wind load to class E2400 (2400 Pa).
- Outward opening windows OUTW98 profile have water tightness to class E1500 (1500 Pa) and wind load to class C4 (1600 Pa).
98 mm thickness timber window and doors profile IV98+P Softline. U = 0.68 W/m²K
IV98 Softline +P profile is the same 98 mm profile but it has an insulated thermoplastic foam which improves a timber window heat transfer value up to Uw 0.68 W / m2K! Insulated timber profile can be bot both outward and inward opening windows and doors.

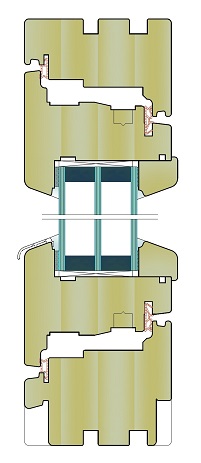

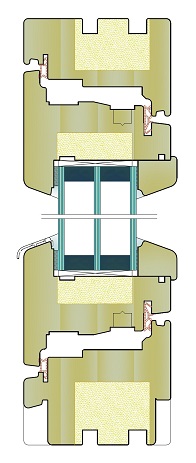

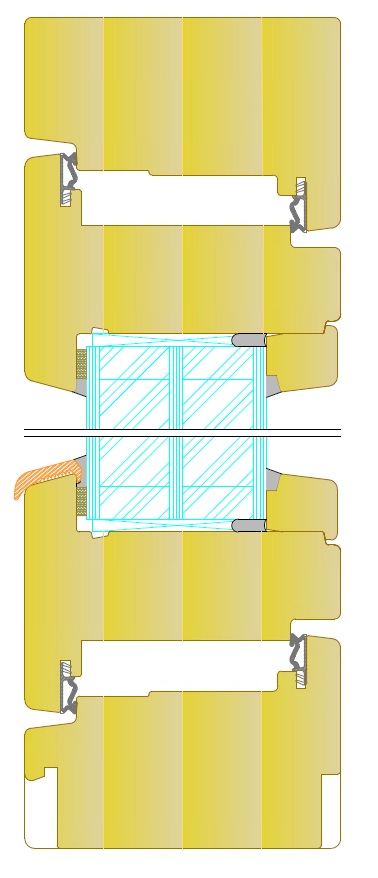

OUTW98 Softline and OUTW98+P Softline section details for casement windows:
 |
 |

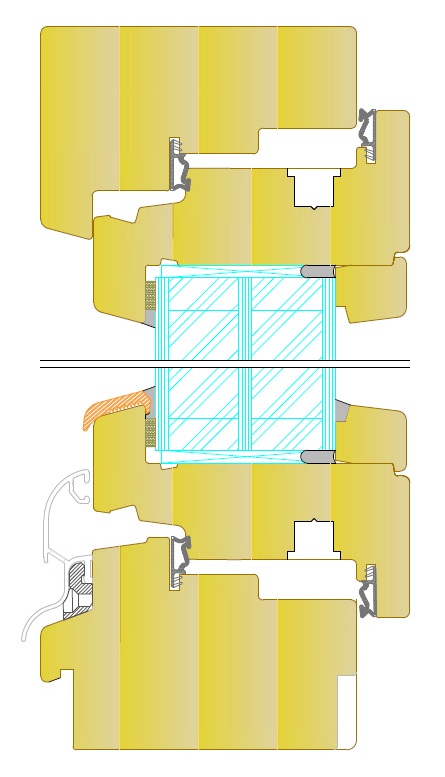

IV98 Softline and IV98+P Softline section details for tilt and turn windows:
 |
 |

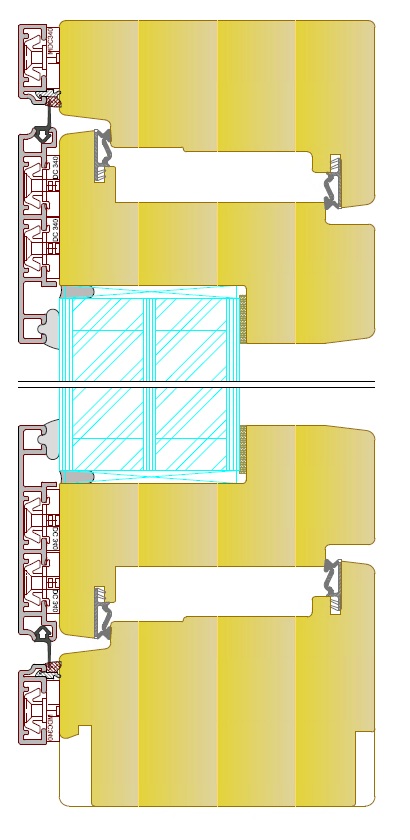

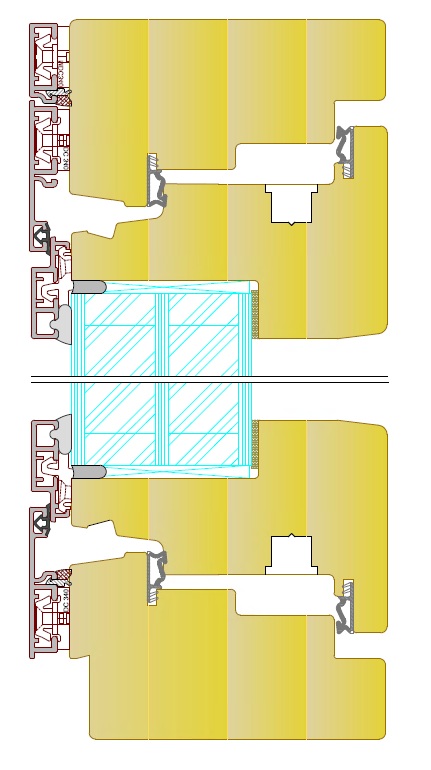

IV98 Softline and IV98+P Softline profiles can be cladded with aluminium profile "ALURON":
 |
 |
