Tilt and turn windows

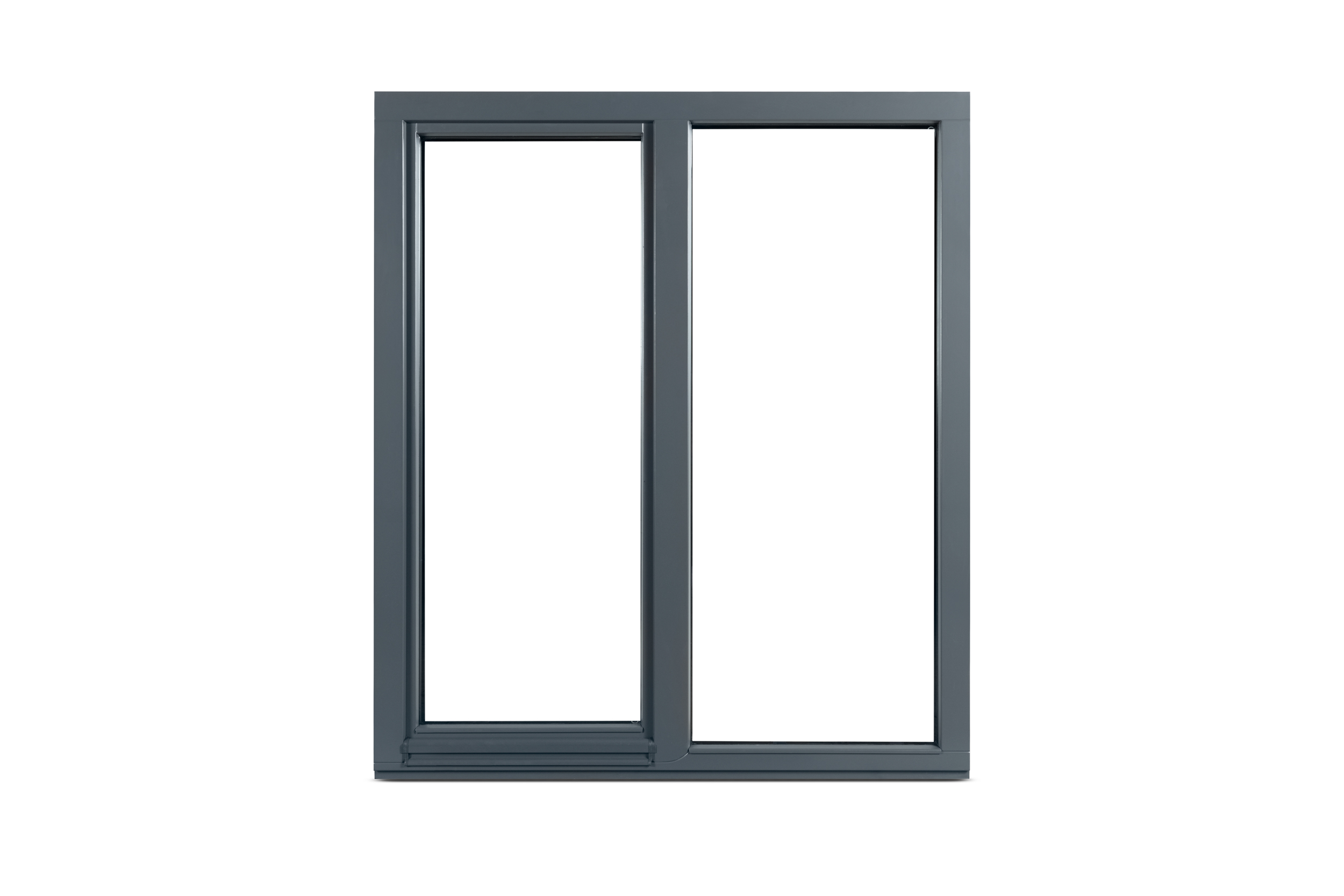

Inward opening tilt and turn windows
This is Softline profile of European type of inward opening timber windows and balcony doors which is the most popular product in Europe. The inward opening windows we can produce could have a wide variety of shapes and dimensions where a maximum sash weight could reach up to 130 kg.
Softline profile has blunted edges on both the inner and outer sides of the window that allow to carry out the timber window’s finish more qualitatively: the window looks aesthetically better rather than those with the angular edges.
We can offer tilt and turn timber window and balcony door profiles in width of 98 mm and 78 mm. More information you can find here: Profiles
We use the latest TITAN series hardware produced by Siegenia-Aubi (Germany). The TITAN comfort mushroom cams ensures smooth and faultless opening, tilting and closing of timber windows. A standard window opening scheme is tilt and turn, but there are other possible options as turn only or tilt only just for ventilation (with an opportunity to open a sash in for cleaning the window), as well as option of micro-ventilation (night vent).
IV78 Softline profile timber tilt and turn windows have Uw value from Uw - 0.8 and IV98 Softline windows with Uw from 0,73! Airtightness Class 4!
We offer only triple glazed glass units up to 60 mm thickness. The standard glazing options are as follows: triple glass units of 56 mm for 98 mm profile, 44 or 52 mm for 78 mm profile windows and doors.
Оur timber windows have dual seals (gaskets) all over a sash perimeter to ensure air permeability to class 4, water tightness to class 9A (600 Pa) and wind load to class E2400 (2400 Pa).
The lower horizontal surfaces of each timber window outside are covered with small timber (accoya) drip rail and bigger aluminium rail with plastic end caps.
For more information about the materials used for our timber windows, click here: Materials

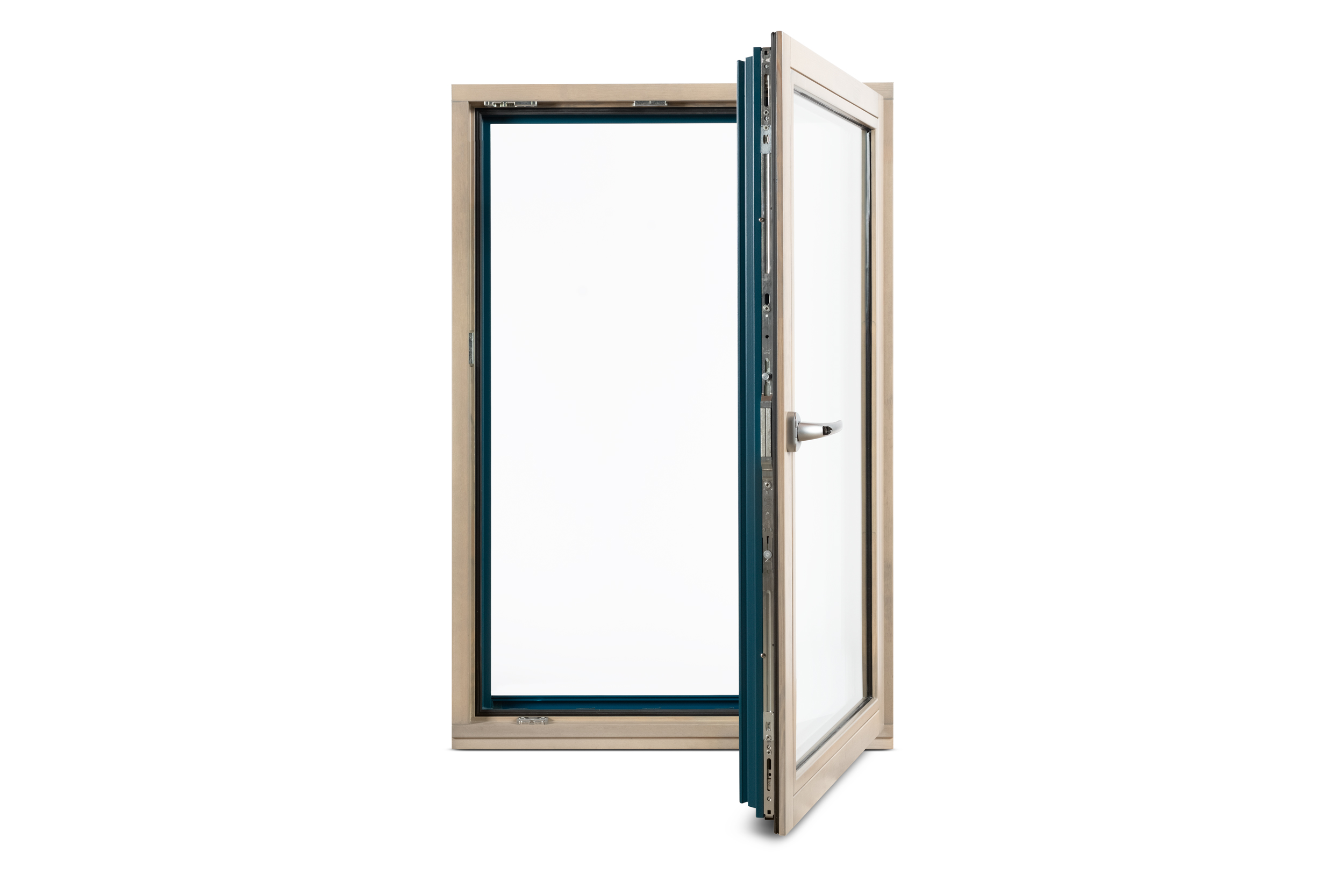

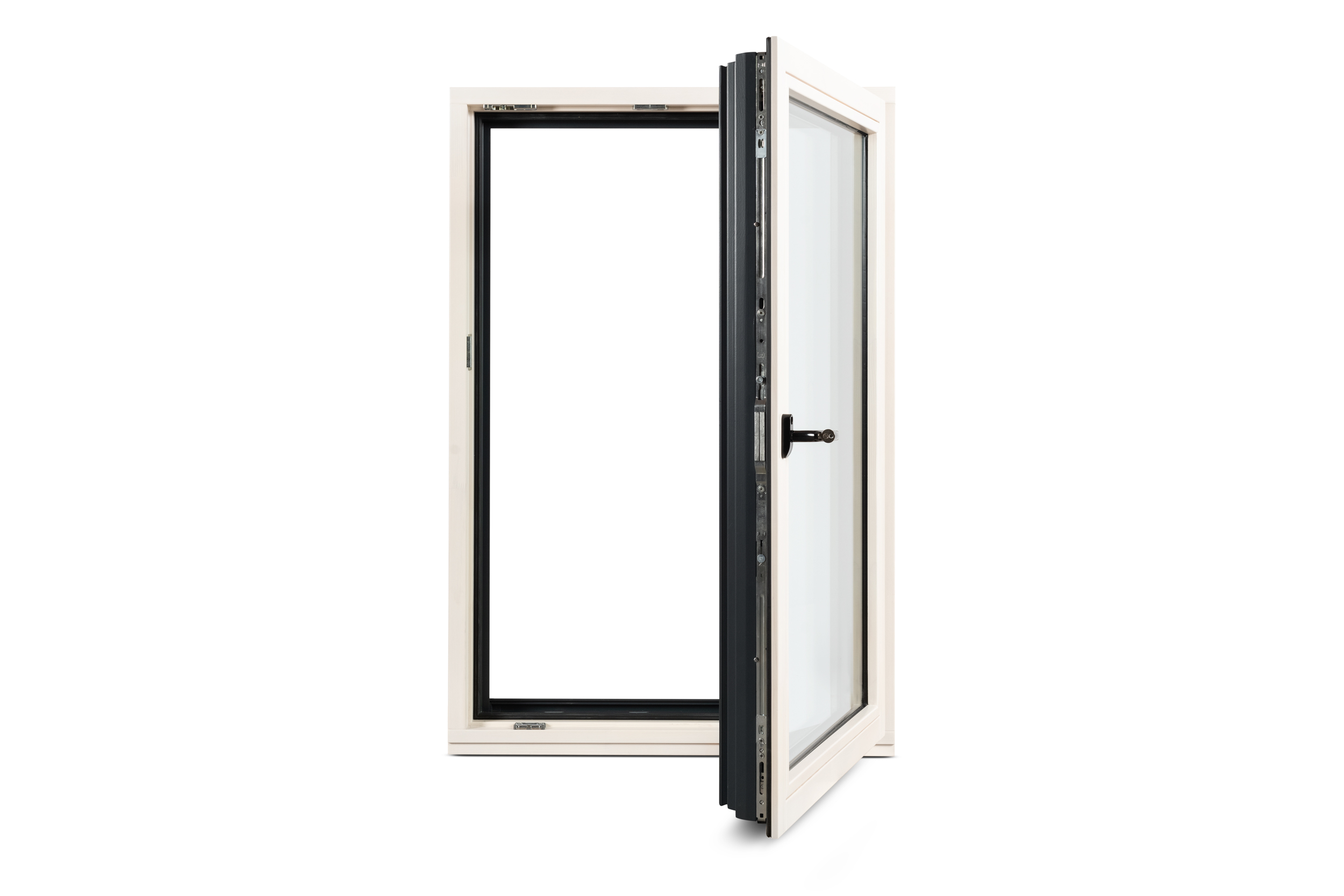

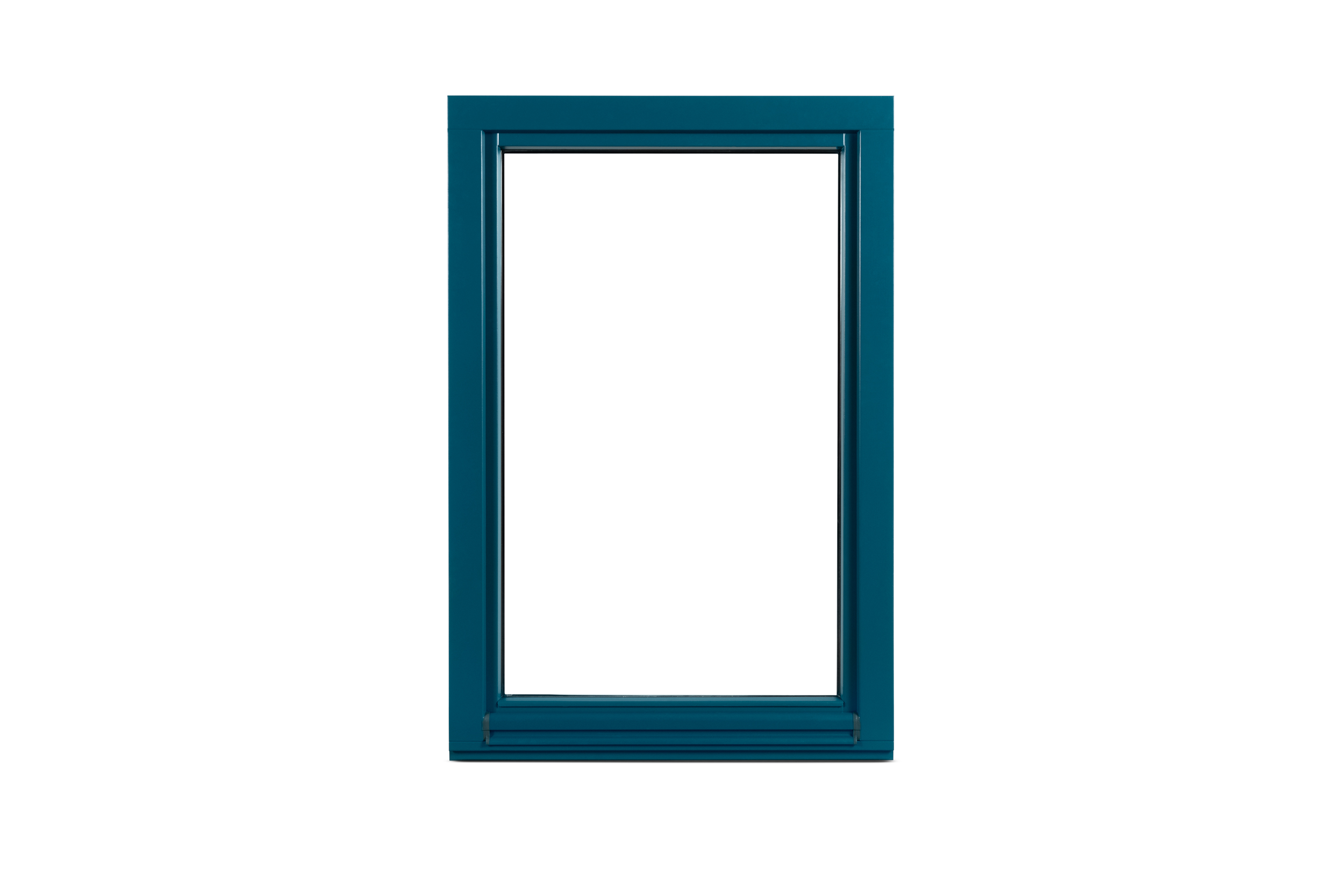

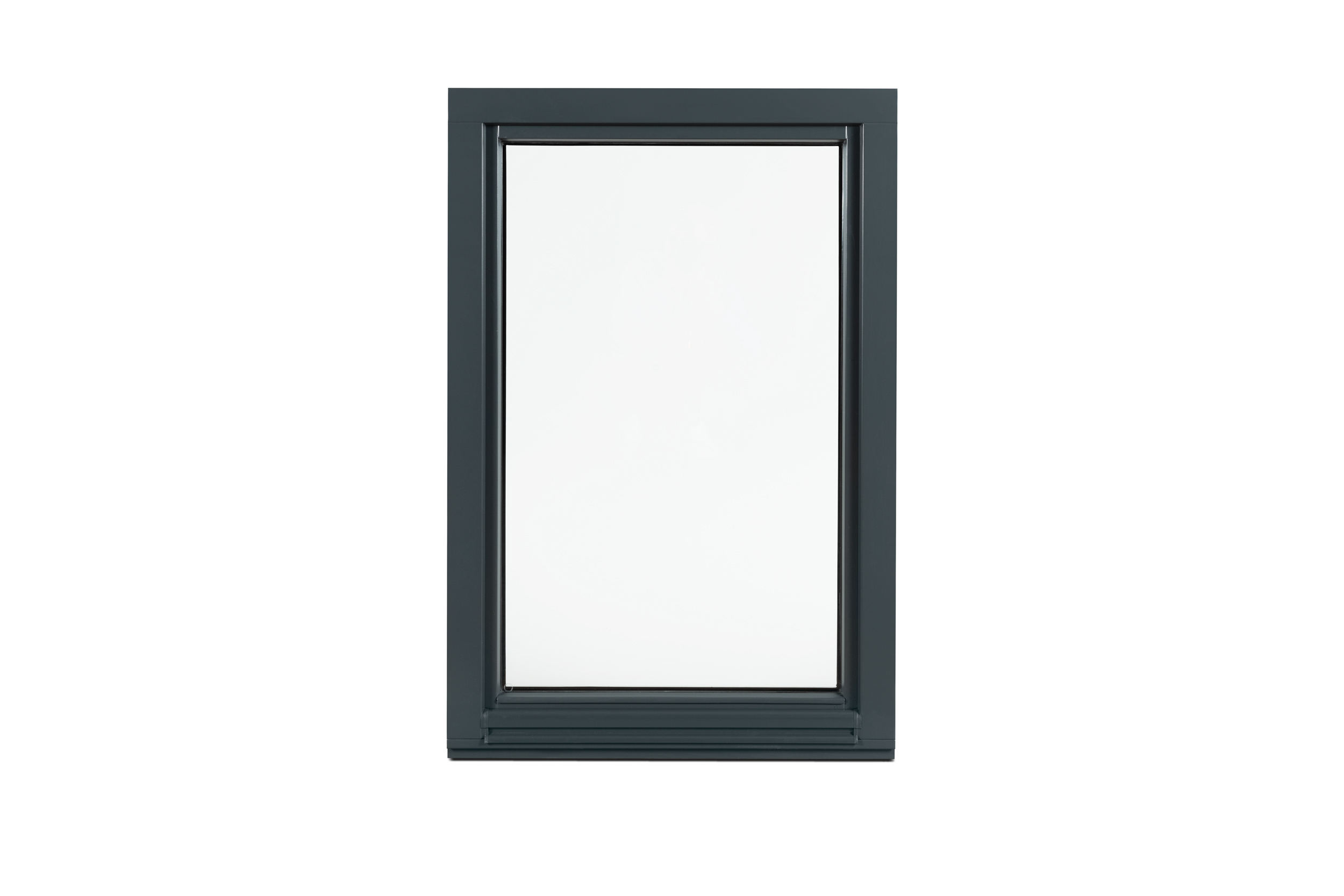

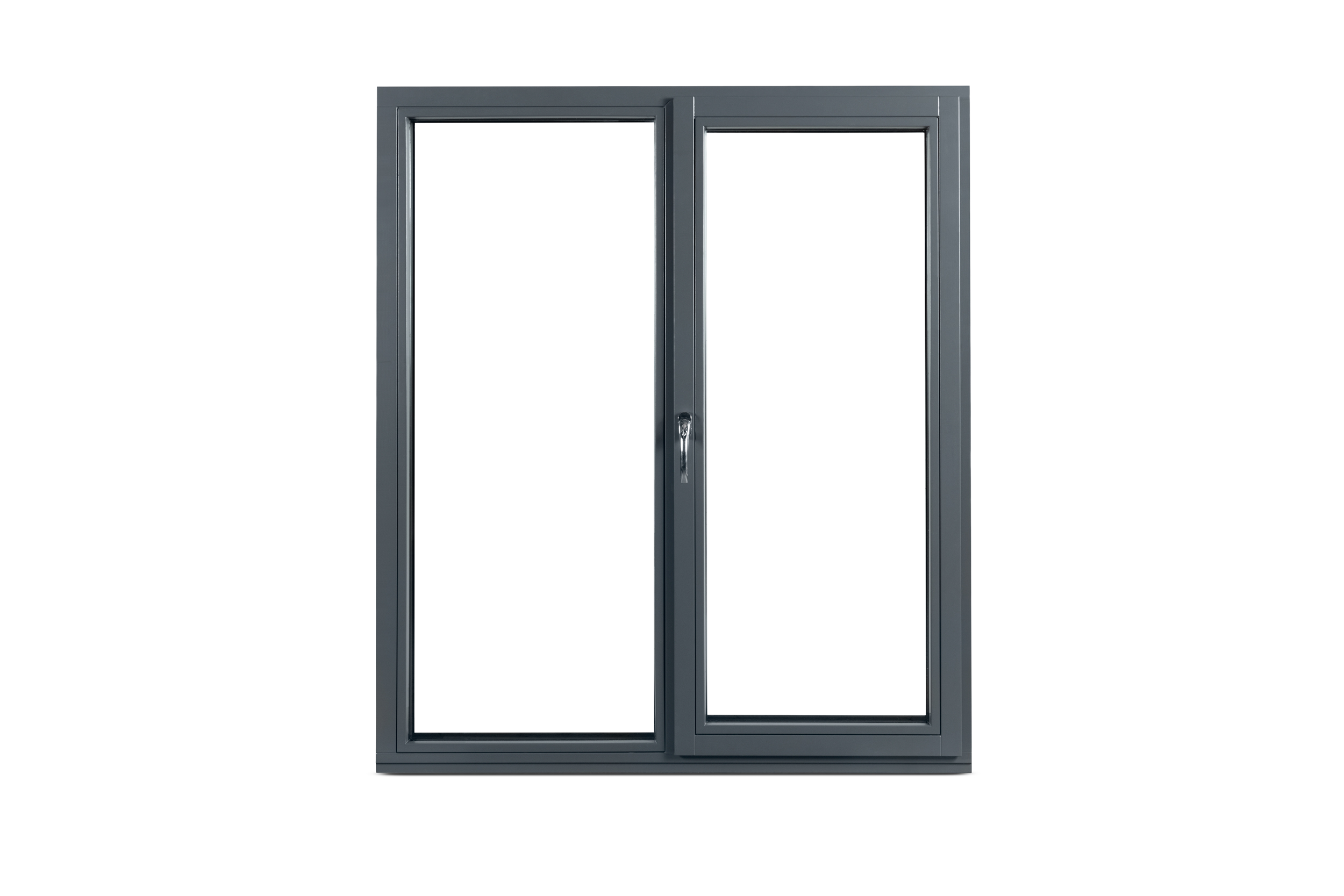

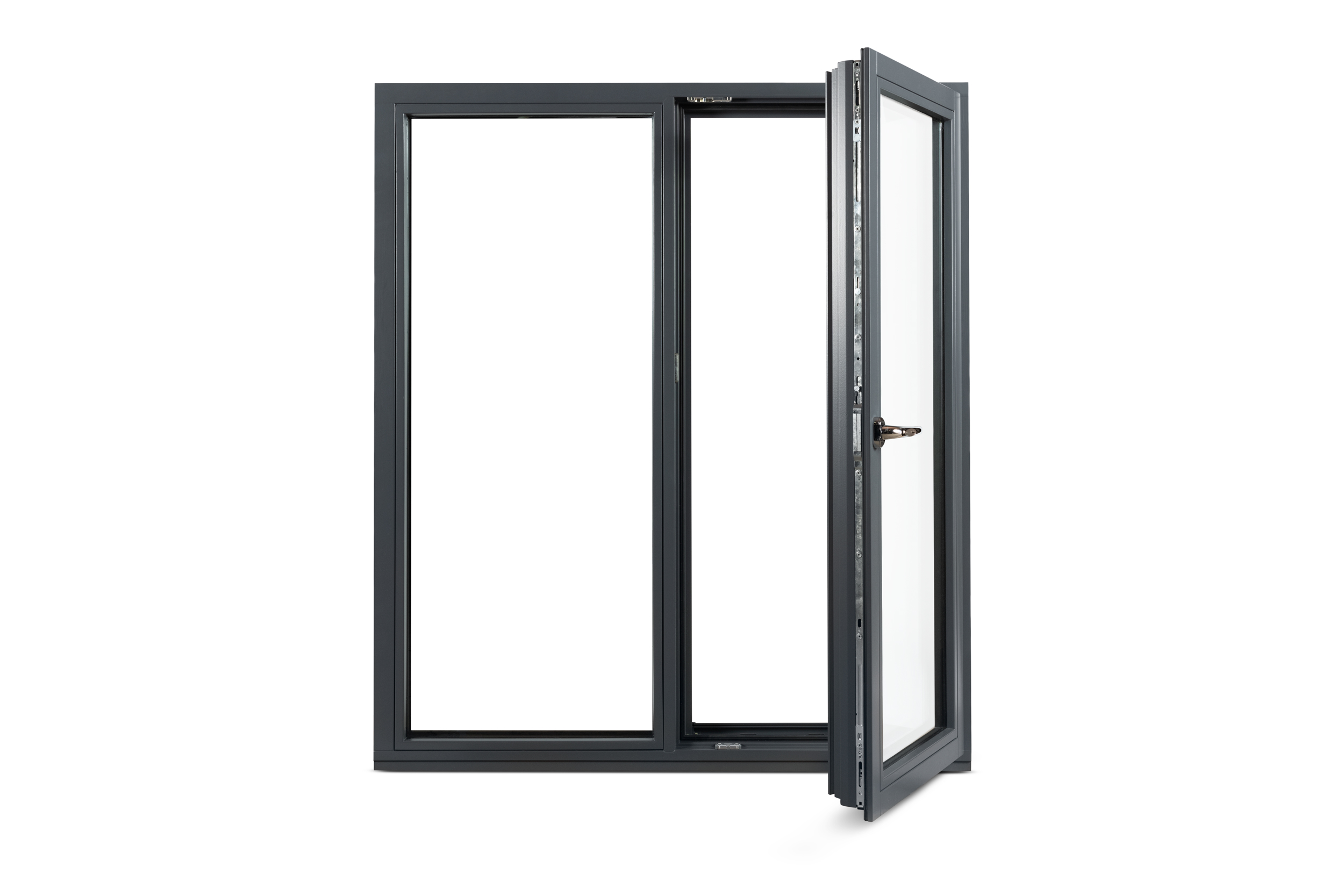

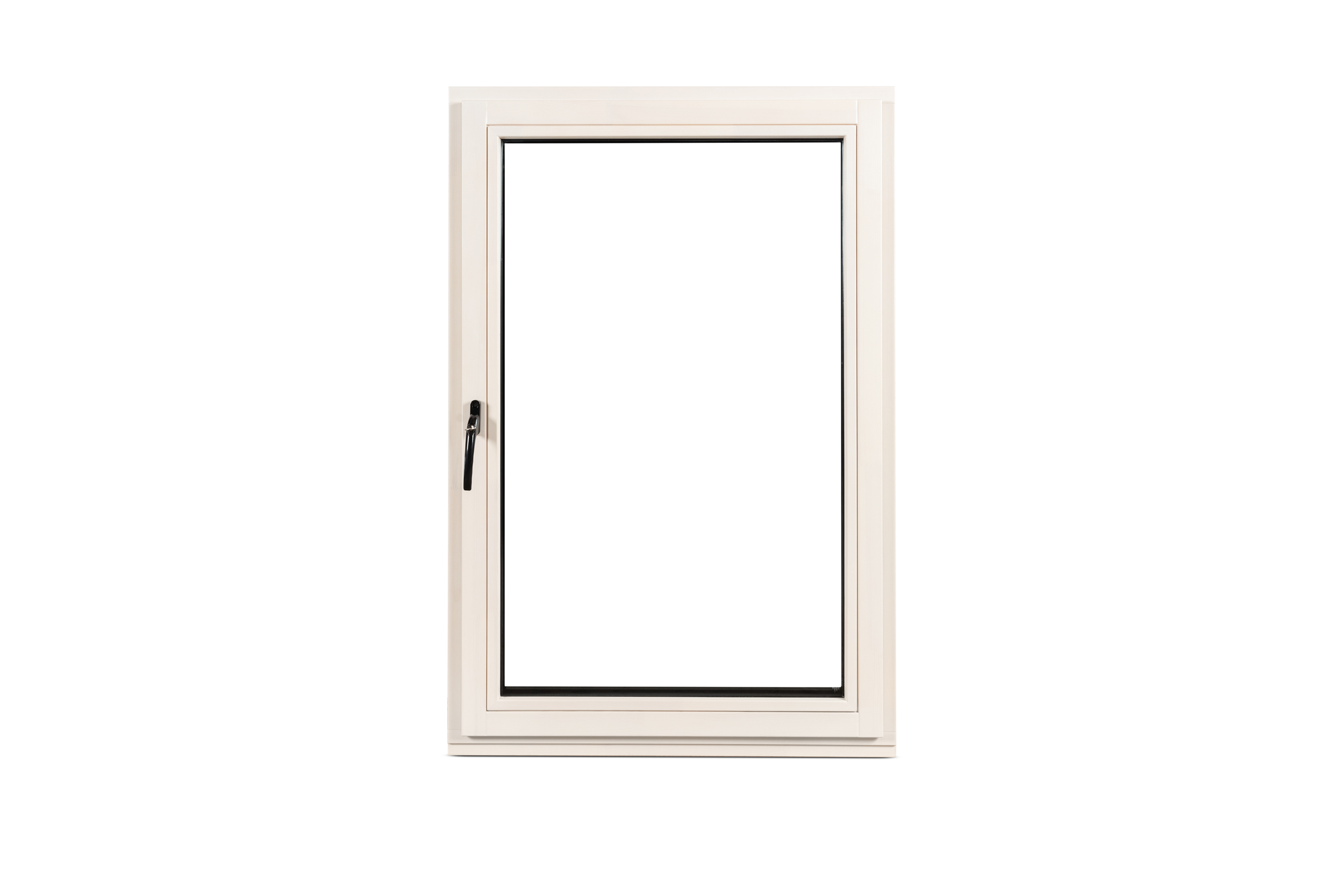

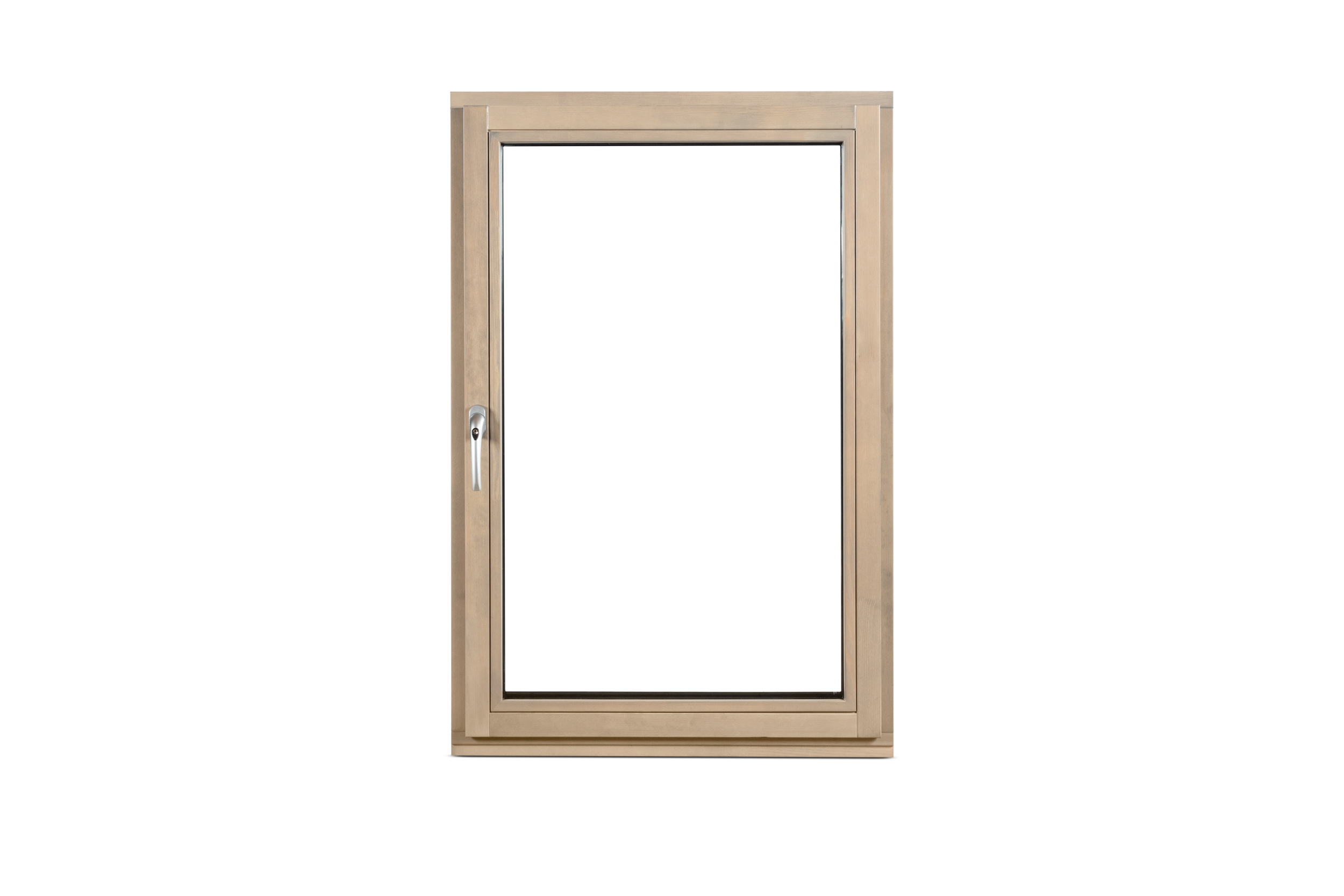

Gallery of inward opening tilt and turn windows:
Inward opening tilt and turn windows with alu cladding outside
Each inward opening timber window and balcony door could be cladded with unique desing (flush style) aluminum screen from the outside. In this case, the wooden window has better protection from harmful external factors, UV rays, rain, dust, cold, mechanical damage.
IV78 Softline profile timber tilt and turn windows with aluminium cladding outside have Uw value from Uw - 0.76 and IV98 Softline windows with Uw from 0,73! Airtightness Class 4!
We offer unique desing aluminum screen, flush on the outside, which could be painted in any colour according to RAL pallete, including Coatex finishes.
The windows can be manufactured in different triangular shapes.
Gallery of inward opening tilt and turn windows with alu cladding:
